Upgrade Your Property with Smart Security & Convenience

Stop getting out of your car in the rain or fumbling with manual locks. This Automatic Single Swing Gate Opener Kit turns your driveway gate into a smart, secure, and convenient entry point. Designed for performance, it’s the perfect DIY-friendly kit to automate your home, farm, or ranch entrance.

A Pro-Installer’s Take from Guerrero Fences: “A gate opener is a key part of your home’s security. We like this kit because it combines modern smart features (like app control) with a tough, reliable motor. The 24VDC motor is safer than high-voltage AC and provides consistent, smooth power. With a 660lb capacity and an IP55 rating, it’s a ‘set-it-and-forget-it’ piece of hardware that can handle the RGV heat or a northern winter. The ‘Fail Secure’ feature is a must-have—it keeps the gate locked and secure, even if the power goes out.”

What It’s Used For

• Residential Driveways: Automate your main driveway gate for easy access with a remote or your phone.
• Farms & Ranches: Secure property entrances for livestock and equipment.
• Heavy-Duty Gates: Ideal for ornamental, wood, or vinyl gates up to 9.8 feet long and 660 lbs.
• Smart Home Integration: Perfect for homeowners who want to connect their gate to Alexa, Google Home, or the Tuya smart app.

Features & Specifications

Key Features:

• Smart Wi-Fi Control: Connects to your home Wi-Fi, allowing you to open, close, and monitor your gate from anywhere using the Tuya app, Amazon Alexa, or Google Assistant.
• Heavy-Duty 24VDC Motor: The powerful 40W motor provides smooth, stable power for heavy gates up to 660 lbs and 9.8 feet (3m) long.
• IP55 Weather-Resistant: The housing and components are rated to protect against dust and rain, ensuring reliable operation in all weather conditions (from -4°F to 122°F).
• Fail Secure with Signal: The gate automatically locks when closed and remains secure during a power outage, keeping your property safe.
• Auto-Close Function: Set the gate to close automatically after a set time (up to 5 minutes) so you never have to wonder, “Did I leave the gate open?”
• Complete Basic Kit: Includes the core components you need for installation, including two remote controls for vehicle access.

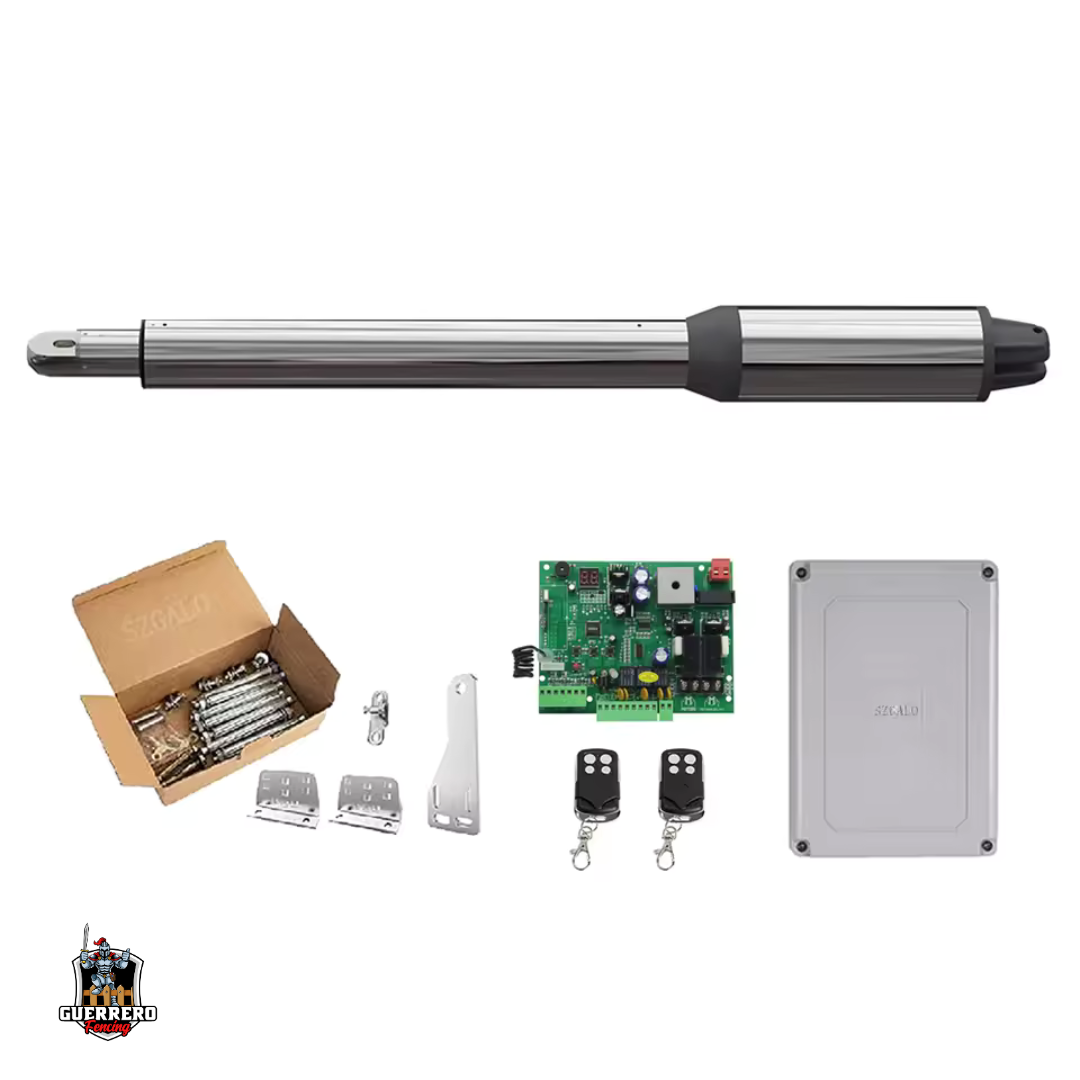

This Basic Kit Includes:

• 1x Gate Opener Actuator Arm (24VDC Motor)
• 1x Control Box (CPU Operator Mechanism)
• 2x Remote Controls
• 1x Set of Mounting Hardware (Screws, Hinges, Brackets)
• 1x User Manual

Technical Specifications:

• Model Number: SPKM-C01
• Input Power: 120VAC
• Motor Voltage: 24VDC, 40W
• Max Single-leaf Weight: 660 lbs (150kg)
• Max Single-leaf Length: 9.8 ft (3 meters)
• Arm’s Extended Speed: 0.63 in/s (1.6 cm/s)
• Arm’s Max Travel: 11.8 in
• Max Gate Open Angle: 110 degrees
• Protection Class: IP55
• Operating Temperature: -4°F to 122°F (-20°C to +50°C)
• Smart Home Platform: Alexa, Tuya, Google Assistant
• Security Mode: Fail Secure with Signal
